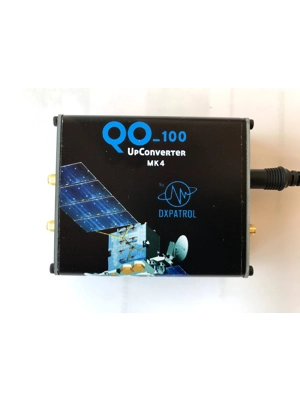

UpConverter MK4 for QO-100
Product Details
- UpConverter MK4 for QO-100
- YbOSwyN
- Weight: 225.0g
- Product Condition: New
- Units in Stock: 6
£139.99 inc. tax
Product Description
Description
• Full lockable into a internal TCXO 10 Mhz reference or a external GPSDO
• TX /Standby function with RF VOX • Extreme accuracy and precision transmission frequency.
• Local Oscillator has 4 factory pre-programmed frequencies for 4 IF usages. (see table)
• Easy selection by dip switch ( s1) on board.
• Clean and stable signal. • Spurious emissions = < 50dB
• 200mW output 23dBm
• Local Oscillators uses a Analog Devices AF4351 synthesizer
• locked into 10MHz TCXO Clipped Sine Wave Oscillator Frequencies Stability 500ppb
• power supply 10 to 15V • Current consumption 300mA
• Dimensions: 77mm/67mm • Connectors SMA
• PLL Lock Green LED indication
• TX/Standby Green/Orange LED indication
• RF input 1 to 3 W ( 6W absolute maximum)
• New DC plug connection • Metal case
• Full lockable into a internal TCXO 10 Mhz reference or a external GPSDO
• TX /Standby function with RF VOX • Extreme accuracy and precision transmission frequency.
• Local Oscillator has 4 factory pre-programmed frequencies for 4 IF usages. (see table)
• Easy selection by dip switch ( s1) on board.
• Clean and stable signal. • Spurious emissions = < 50dB
• 200mW output 23dBm
• Local Oscillators uses a Analog Devices AF4351 synthesizer
• locked into 10MHz TCXO Clipped Sine Wave Oscillator Frequencies Stability 500ppb
• power supply 10 to 15V • Current consumption 300mA
• Dimensions: 77mm/67mm • Connectors SMA
• PLL Lock Green LED indication
• TX/Standby Green/Orange LED indication
• RF input 1 to 3 W ( 6W absolute maximum)
• New DC plug connection • Metal case
