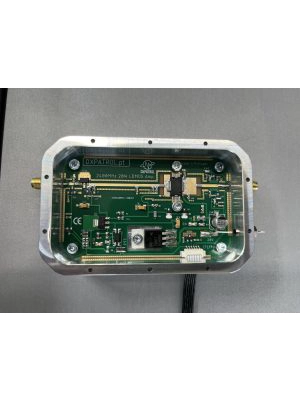

New 12W 2400MHz QO-100 Amplifier

The new amplifier from DXpatrol to QO-100 2400Mhz 12W

Base on the new BLP9G0722-20G we present this new simple amplifier That will make easy to set a QO-100 satellite station

The amp is in a conservative output power of 12W, but 20W is possible to achieve without any modification.

The amplifier gain is about 25dB, so the drive optimum is ~ 50mW to 100mW
Power output 50mW in for 12W ( 100mW for 20W out)

The Voltage is 28V DC and will drain up to 2A

Amp external dimensions : 97mm X 62mm X 26mm The 4 holes on sides are M3


Now with Rugged Aluminium Box,

VOX PTT and PWR/SWR readings !

LDMos , rugged amplifier with aluminium box
NXP MHT1008NT1 RF amplifier
Designed for DXpatrol Upconverter as driver.
Input > 70mW
Output 12W* (5W if 12V supply)
Voltage 28V ( 12V to 28V stepUP converter included)
Bias current 600mA
Max current 1,5A
TX-Ground PTT
Vox PTT
SMA connectors
Feed Trough capacitors
SWR and POWER meter indication.
SWR- Input 1:1.3 @ 50 Ohms
Max VSWR output – 5:1
Operating Temperature- 40ºC to 80ºC Max Temperature- 150ºC
LDMOS- MHT1008NT1
Driver- RF2126
PWR meter DC 0V to 4V ( full power )
SWR meter DC 1.5V@ SWR 1:1 /~/ 4V @ SWR Ꝏ
