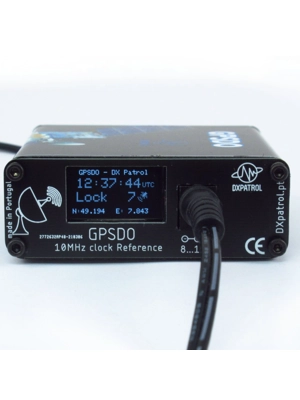

DXPatrol GPSDO 2.0 GPS Disciplined Normal Oscillator with Oled Display

New Features:



Oled Dislay to display

The exact UTC time
Number of satellites
Wait/Lock
Local GPS coordinates
4 x 10 MHz outputs SMA (3 x sine, 1 x square)





Characteristics:

- OLED display data display

- Ultra-accurate UTC clock

- Display of local GPS coordinates

- Number of satellites in range

- Wait/Lock indicator.

- GPS, Galileu, Glonass receiver

- 4 ( 3+1) outputs 10MHz 1.5vpp

- 3 sine wave outputs A+B+C ~ 7dBm

- 1 Square Wave Output

- Phase noise @ 1Hz -80dBc/Hz

- Phase noise @ 10Hz -120dBc/Hz

- Phase noise @ 1KHz -145dBc/Hz

- Phase noise @ 10KHz - 150dBc/Hz

- Second harmonic < 51dBs

- Third harmonic < 56dBs

- Switch-on time ~ 5 minutes

- Working temperature range 0°C to 75°C

- Operating temperature ~50° C (OCXO)

- Supply voltage 8V to 14V

- Current 600mA in the first minutes, 270mA when curled

- Metal case dimensions : 84mm / 71mm / 25mm
