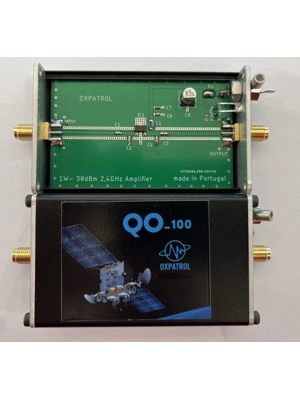

DX Patrol 2.4GHz 1W Booster
Product Details
- DX Patrol 2.4GHz 1W Booster
- BLUBmSH
- Weight: 750.0g
- Product Condition: New
- Units in Stock: 5
£59.99 inc. tax
Product Description
The DX Patrol 2.4GHz 1W Booster is a compact, high-quality power amplifier designed to boost low-power signals from SDRs such as the ADALM-Pluto, Lime SDR, or similar devices. Providing a clean 12 dB gain across the 2300–2500 MHz band, it delivers up to +30 dBm (1 W) of RF output power, making it ideal as a driver stage for QO-100 uplink systems or other 2.4 GHz applications.
Built for reliability and ease of use, the amplifier operates from a simple 5 V DC supply and features SMA connectors for secure, low-loss connections. Its efficient design draws only 150 mA at idle and up to 450 mA at full output, with an LED power indicator for quick visual status. The internal feed-through capacitor ensures clean DC input and stable performance even under demanding conditions.
Compact and rugged, the DX Patrol 1W Booster is the perfect intermediate stage for radio amateurs looking to enhance their signal strength before feeding a higher-power amplifier, ensuring clear, distortion-free transmission with minimal setup.
Main Features
Frequency range: 2300–2500 MHz
Output power: +30 dBm (1 W)
RF gain: 12 dB
Input return loss: 20 dB (50 Ohms)
Supply voltage: 5 V DC
Quiescent current: 150 mA
Operational current: 450 mA (full output)
Noise figure: 4.4 dB
SMA connectors for RF input and output
Feed-through capacitor and ground terminal for power input
LED indicator for power status
Compact and efficient design
Performance Overview
The DX Patrol 1W 2.4 GHz Booster offers an excellent balance of gain, output power, and efficiency in a small form factor. It is an ideal companion for SDR-based satellite uplink systems and QO-100 users, providing the extra drive needed for final-stage amplifiers without compromising signal purity.
Built for reliability and ease of use, the amplifier operates from a simple 5 V DC supply and features SMA connectors for secure, low-loss connections. Its efficient design draws only 150 mA at idle and up to 450 mA at full output, with an LED power indicator for quick visual status. The internal feed-through capacitor ensures clean DC input and stable performance even under demanding conditions.
Compact and rugged, the DX Patrol 1W Booster is the perfect intermediate stage for radio amateurs looking to enhance their signal strength before feeding a higher-power amplifier, ensuring clear, distortion-free transmission with minimal setup.
Main Features
Frequency range: 2300–2500 MHz
Output power: +30 dBm (1 W)
RF gain: 12 dB
Input return loss: 20 dB (50 Ohms)
Supply voltage: 5 V DC
Quiescent current: 150 mA
Operational current: 450 mA (full output)
Noise figure: 4.4 dB
SMA connectors for RF input and output
Feed-through capacitor and ground terminal for power input
LED indicator for power status
Compact and efficient design
Performance Overview
The DX Patrol 1W 2.4 GHz Booster offers an excellent balance of gain, output power, and efficiency in a small form factor. It is an ideal companion for SDR-based satellite uplink systems and QO-100 users, providing the extra drive needed for final-stage amplifiers without compromising signal purity.
